RP883870

A COME UP a világ vezető minőségi csörlö gyártója, amelyet 1977 óta gyárt és 1996 óta a japán Toyo Koken K.K.-val gyártja szoros együttműködésben.

4.3 Tonnes Self-Recovery Winch, 12V.

9500lb winch with steel cable and roller fairlead.

180,00 €
Adóval együtt
146,34 € Áfa nélkül
Mennyiség
Szállítás 10 - 14 napon belül

Leírás
Specification/Part Numbers
  • Part number: PN 295980
  • Rated line pull: 4,309 kg / 9,500 lb single line
  • Motor: 3,730 w / 5.0 hp 12V series wound
  • Gear ratio : 3-stage planetary 159:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
  • Winch construction: Aluminum die cast housings with steel drum
  • Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)

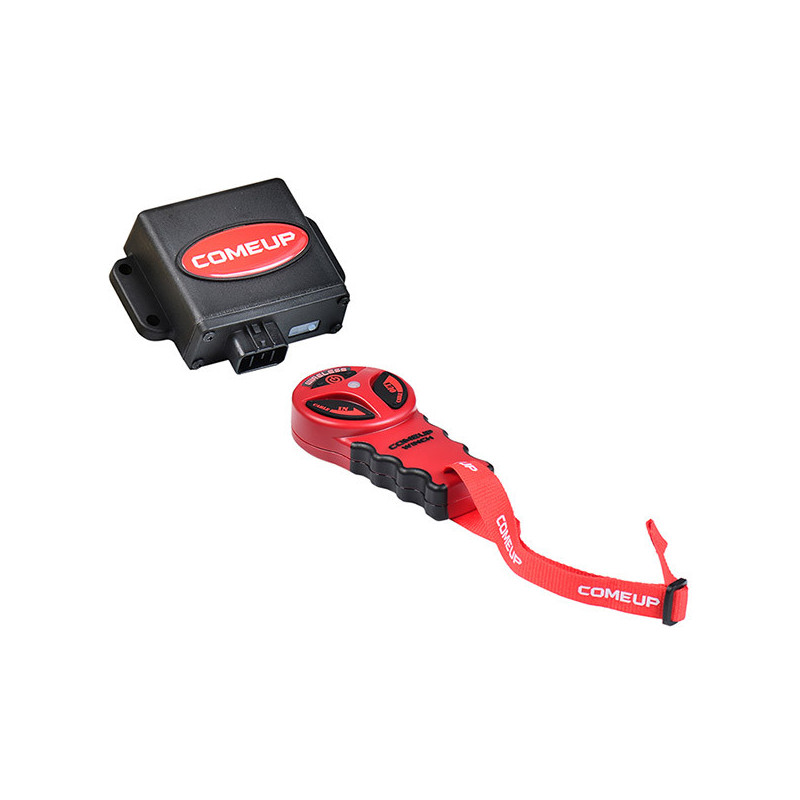

  • Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
  • Rope type: Galvanized aircraft A7 x 19 wire rope
  • Rope size: 8.7 mm x 30.5 m (11/32” x 100’)
  • Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
  • Mounting : Foot forward or foot down mounting workable
  • Finish :  Matte black powder-coated
  • Winch weight (including rope) : 38.5 kg / 85 lb
  • Gross weight : 52.6 kg / 116 lb
  • Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp, Draw,  A
12V
No load
14.5 / 47.6
60
907 / 2,000
4.7 / 15.2
115
1,814 / 4,000
3.5 / 11.5
210
2,722 / 6,000
2.8 / 9.2
245
3,629 / 8,000
2.3 / 7.6
280
4,309 / 9,500
2.1 / 6.8
380

Line Pull and Rope Capacity:

Layer of Rope
Pull by layer, kg / lb
Total Rope on the Drum, m / ft
1st
4,309 / 9,500
5.8 / 19.1
2nd
3,472 / 7,655
13.1 / 42.9
3rd
2,908 / 6,410
21.7 / 71.2
4th
2,501 / 5,514
30.5 / 100

Warning
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Automotive Winch: Limited lifetime warranty for mechanical components,
                               New Seal Gen2 Series winch a three (3) years warranty for electrical components,
WIRE/SYNTHETIC  ROPES ARE NOT INCLUDED UNDER WARRANTY.

Dimension, mm/in:



  • 4 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 90° increments.


Accessories:

Standard Accessories  Option Accessories
  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Bridge control box
  • Wire rope w/safety hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
  • Winch accessory kit
